High Hardness Good Sharpness PCD Saw Blade for Panel Sizing Machine
Product Features
1. TCG with chamfer on flat tips: The reasonable tooth shape design ensures the smoothness of the cutting material.
2. Silencer copper pin: PCD saw blade has high hardness, good sharpness, strong wear resistance, small sawing path, high precision, good heat dissipation and deep depth of cut.
3. Tension ring: Silence reduction design, customized for different material properties.
Quick Detail
PCD saw (polycrystalline diamond) with excellent performance is suitable for single and double longitudinal cross-section of plywood, particle board, etc. It is mounted on the panel sizing machine, precision electronic saws for working.
Specificaiton
| No. | D | d | B | Z | TF |
| 1 | 300 | 80 | 4.0 | 96 | TP |
| 2 | 350 | 30 | 4.0 | 84 | TP |
| 3 | 350 | 30/60/75 | 4.4 | 84 | TP |
| 4 | 355 | 60 | 3.5 | 84 | TP |
| 5 | 380 | 60 | 3.5/4.4/4.8 | 72 | TP |
| 6 | 380 | 65 | 4.4 | 72 | TP |
| 7 | 400 | 60/75 | 4.4 | 84 | TP |
Note
1. D=Outer Diameter, d=Center Hole Diameter, B=Tooth Thickness, Z=No. of Tooth, TF=Tooth Feature.
2. Other specifications can be made according to customers' requirements.

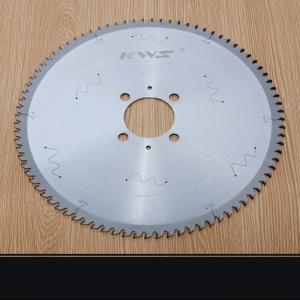

Product Photos
