Woodworking Tungsten Carbide Dovetail Bit Straight Flush Trim Router Cutter Bit
Product Description
The cutter head design has small incision resistance, improves efficiency, easy chip removal, and less chip dust in the chip operation.
The blade is made of tungsten steel, adopting high-tech special grinding process, good strength, high hardness, sharp and wear-resisitant, not easy to break the knife.
The dovetail is probably the most recognizable of all woodworking joints. A dovetail joint is self-aligning and interlocking. There are numerous versions of the dovetail joint, including half blind dovetails, through dovetails, mitered dovetails and sliding dovetails. All of these variations are common in casework and drawer construction. A single dovetail bit can make almost any kind of dovetail, depending on the desired size. You'll need a jig to make most dovetail joints, as well as a guide bushing for your router. Check the instructions with your dovetail jig to select a bit with the appropriate angle, which will usually be somewhere between 7 and 14 degrees.
Specification
| NO. | S | D | H | α |
| 1 | 1/4 | 3/8 | 10 | 8° |
| 2 | 1/4 | 1/2 | 13 | 8° |
| 3 | 1/4 | 5/8 | 16 | 14° |
| 4 | 1/4 | 3/4 | 20 | 14° |
| 5 | 1/4 | 7/8 | 23 | 14°30" |
| 6 | 1/2 | 3/8 | 10 | 8° |
| 7 | 1/2 | 1/2 | 13 | 8° |
| 8 | 1/2 | 5/8 | 16 | 14° |
| 9 | 1/2 | 3/4 | 20 | 14° |
| 10 | 1/2 | 7/8 | 23 | 14°30" |
| 11 | 1/2 | 1 | 26 | 14°30" |
| 12 | 1/2 | 1-1/8 | 29 | 14°30" |
| 13 | 1/2 | 1-1/4 | 30 | 14°30" |
| 14 | 1/2 | 1-1/2 | 30 | 14°30" |
Note

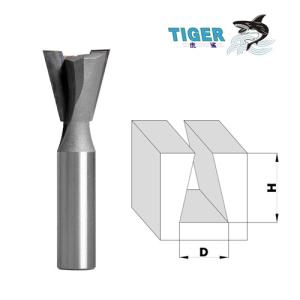

1. S=Shank Diameter, D=Blade Diameter, H=Blade Length, α=The Blade Angle.
2. Other specifications are available upon request.
Product Images
